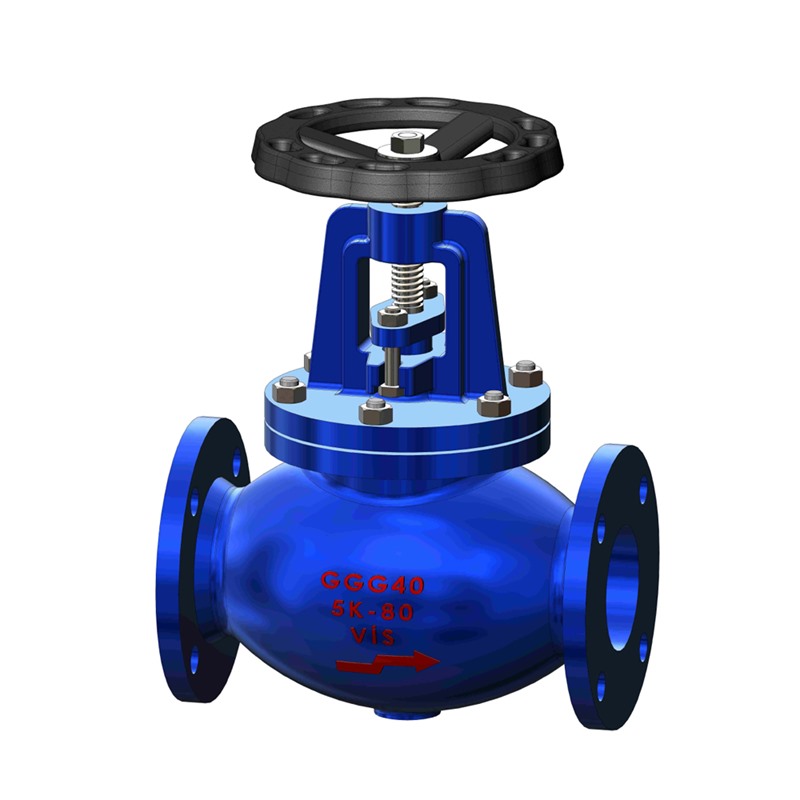

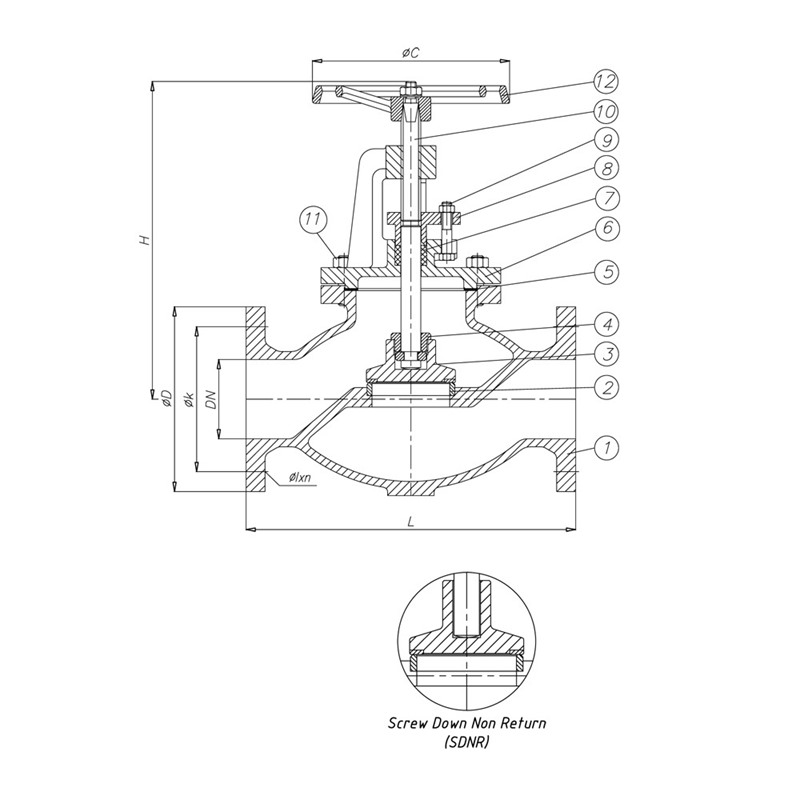

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG 40 / GS-C25 |
| 2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
| 3 | Disc | GG 25 / GGG 40 / GS-C25 |
| 4 | Disc Nut | Brass / 13 Cr |
| 5 | Gasket | Klingerite |
| 6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
| 7 | Packing | Graphite |
| 8 | Gland | GG 25 / GGG 40 / GS-C25 |
| 9 | Bolt/Nut | Galvanized Steel |
| 10 | Stem | CuZn35Ni / 13Cr / SS 304 |
| 11 | Stud/Nut | Galvanized Steel |
| 12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 10K | 50 | 210 | 260 | 160 | 130 | 105 | Ø15x4 | 12,4 | 750201 | 751101 |
| 65 | 250 | 300 | 180 | 155 | 130 | Ø15x4 | 18,2 | 750202 | 751102 | |
| 80 | 280 | 315 | 200 | 180 | 145 | Ø19x4 | 24,1 | 750203 | 751103 | |
| 100 | 340 | 340 | 220 | 200 | 165 | Ø19x8 | 31,1 | 750204 | 751104 | |
| 125 | 410 | 400 | 250 | 235 | 200 | Ø19x8 | 47,5 | 750205 | 751105 | |
| 150 | 480 | 460 | 300 | 265 | 230 | Ø19x8 | - | 750206 | 751106 | |
| 200 | 570 | 550 | 400 | 320 | 280 | Ø23x8 | - | 750207 | 751107 | |
| 250 | 740 | 680 | 400 | 385 | 345 | Ø23x12 | - | 750208 | 751108 | |
| 300 | 840 | 770 | 500 | 430 | 390 | Ø23x12 | - | 750209 | 751109 | |
| 350 | 940 | 840 | 500 | 480 | 435 | Ø25x12 | - | 750210 | 751110 | |
| 400 | 1050 | 940 | 630 | 540 | 495 | Ø25x16 | - | 750211 | 751111 | |
| Design | : | JIS F7305 STOP JIS F7353 SDNR |
| Pressure Rate | : | 5K |
| Size Range | : | DN50-DN400 |
| Flange Ends | : | JIS B2239 - 5K |
| Inspection | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold Water, Oil and Steam |
