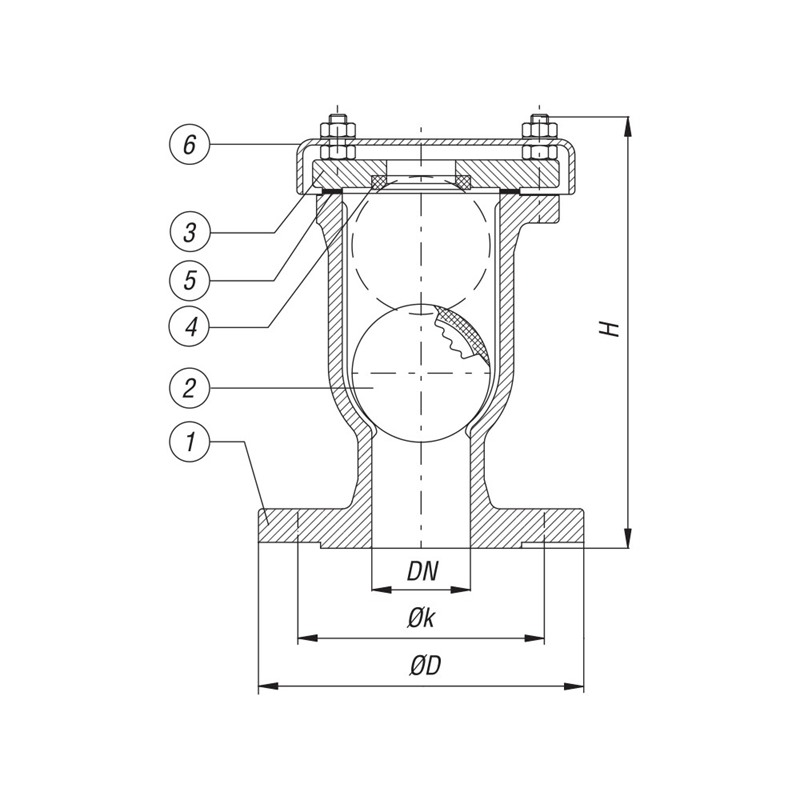

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 |
| 2 | Ball | ST 37 + Perbunan |
| 3 | Cover | GG 25 / GGG-40 |
| 4 | Seal | EPDM |
| 5 | Gasket | EPDM / KLINGERIT |
| 6 | Toz Cover | GG 25 |
| Nominal Diameter | Valve Dimensions | PN10/16 Flange Dimensions | PN25 Flange Dimensions | |||||
|---|---|---|---|---|---|---|---|---|
| DN | B | H | ØD | Øk | Weight | ØD | Øk | Weight |
| 50 | 160 | 230 | 165 | 125 | 8 | 165 | 165 | 9 |
| 80 | 250 | 290 | 200 | 160 | 17 | 200 | 160 | 19 |
| 100 | 270 | 330 | 220 | 180 | 18 | 235 | 190 | 20 |
| 150 | 310 | 435 | 285 | 240 | 50 | 300 | 250 | 55 |
| 200 | 310 | 440 | 340 | 295 | 55 | 360 | 310 | 61 |
| Pressure Rate | : | PN 16-25 |
| Size Range | : | DN50-DN200 |
| Flange Ends | : | EN 1092-2 |
| Tests | : | EN 12266 |
