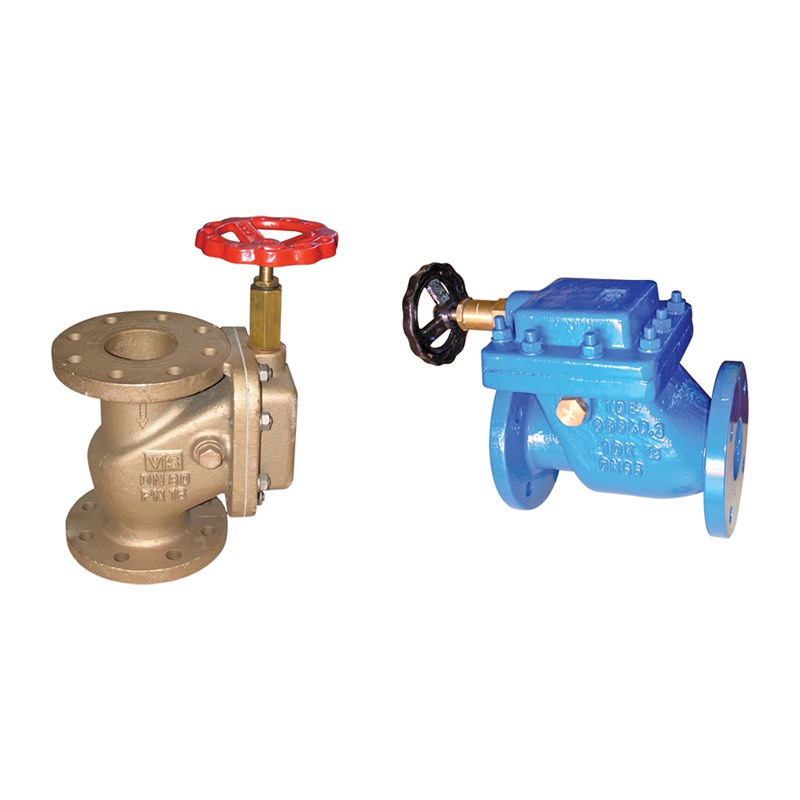

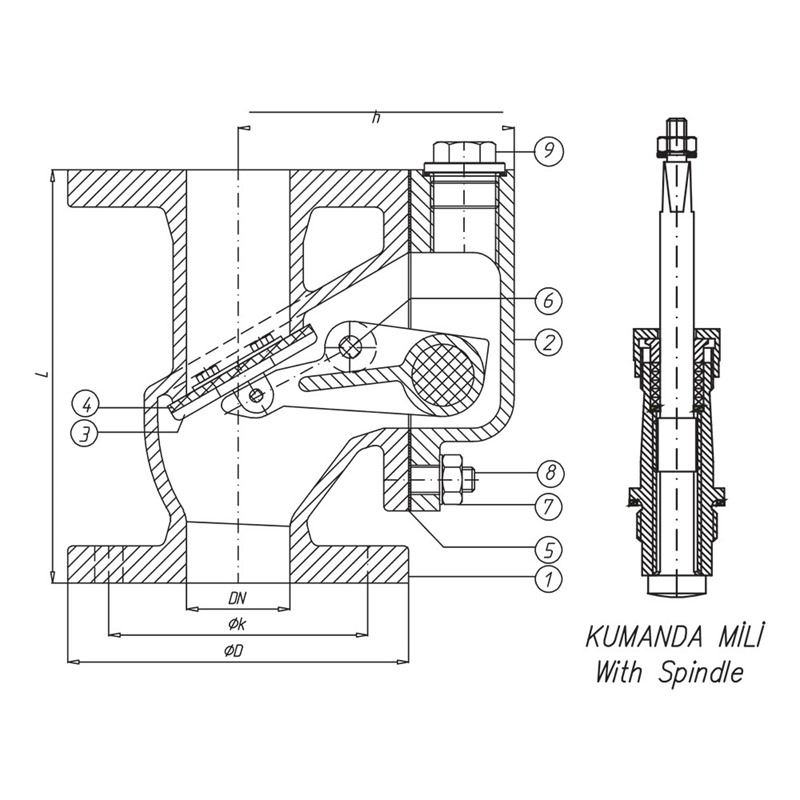

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl O, CuSnl 0/SS304,SS3l 6, Duplex l.4470 |
| 2 | Bonnet | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl O, CuSnl 0/SS304,SS3l 6, Duplex l.4470 |
| 3 | Flap | Bronze RGS, RG7, RGl O, CuSnl 0/SS304, SS3l 6, Duplexl.4470 |
| 4 | Gasket | NBR, Special Rubber |
| 5 | Gasket | NBR, Special Rubber |
| 6 | Pin | Brass / CuSnl O |
| 7 | Nut | Steel / A2 / A4 |
| 8 | Stud | Steel / A2 / A4 |
| 9 | Plug | Brass |
Nominal Diameter | STRAIGHT FORM | Weight | Stock Code | |||
|---|---|---|---|---|---|---|
DN | ØD | Øk | h | L | kg | |
50 | 165 | 125 | 137 | 200 | 16 | |
65 | 185 | 145 | 148 | 240 | 20 | |
80 | 200 | 160 | 174 | 260 | 26 | |
100 | 220 | 180 | 195 | 300 | 33 | |
125 | 250 | 210 | 216 | 350 | 47 | |
150 | 285 | 240 | 242 | 400 | 63 | |
200 | 340 | 295 | 315 | 500 | 100 | |
250 | 395 | 350 | 405 | 650 | 180 | |
| Presure Rate | : | PN 10 |
| Size Range | : | DN50-DN250 |
| Dimensions | : | DIN 87 101 B |
| Flange Ends | : | DN EN 1092 |
| Test | : | DIN EN 12266 |
| Options | : | ANSI JIS Flanges, Position |
| Indicator | : | ANSI, JIS Flanş Ölçüleri, Seviye Göstergesi |
