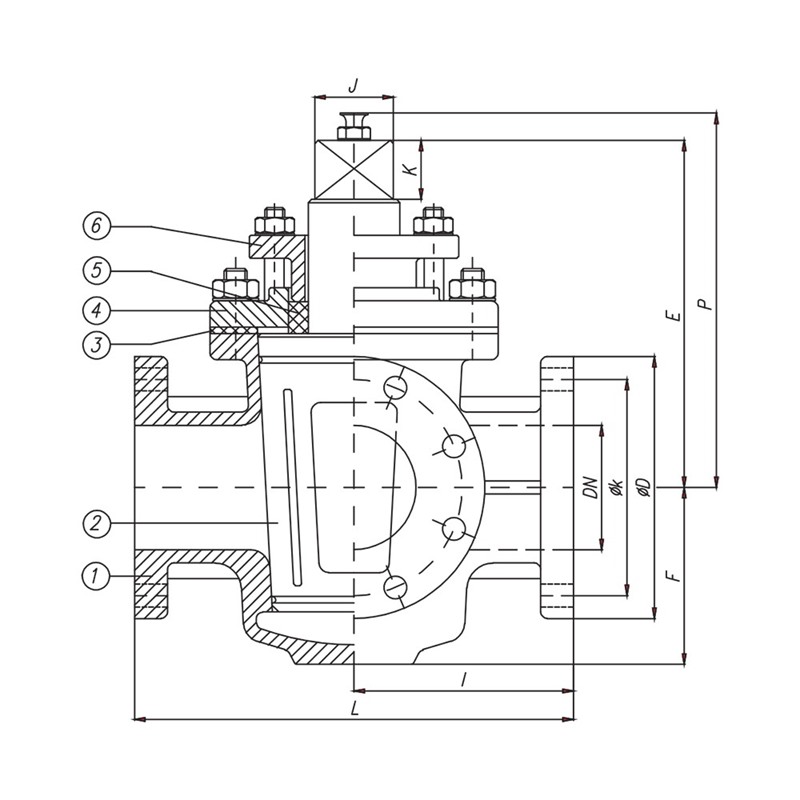

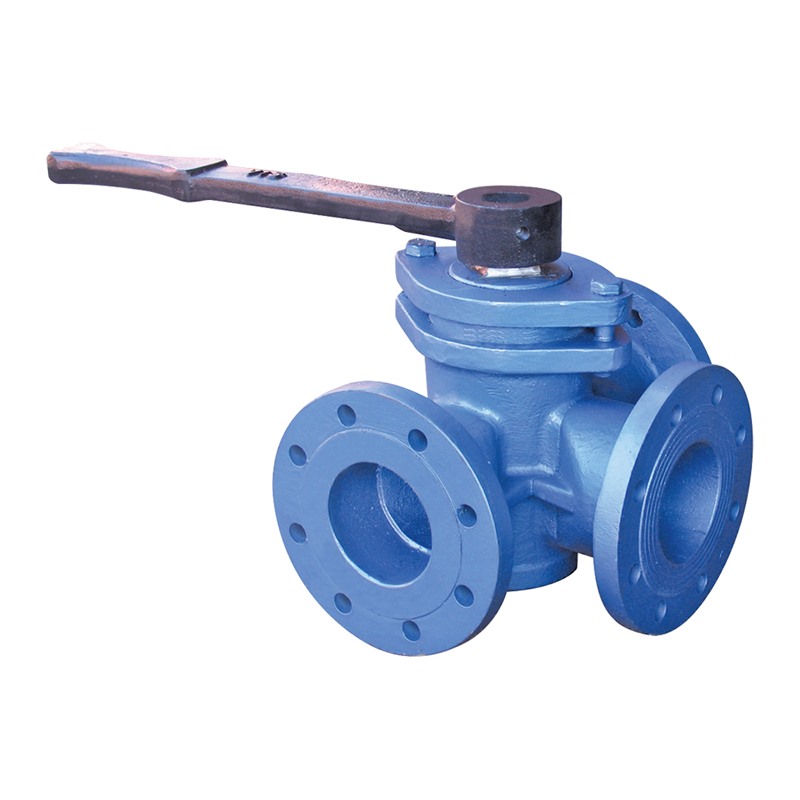

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG 40/ GSC 25/ SS 304 / SS 316 / Bronze Rg-5 |
| 2 | Plug | GG 25 / GGG 40/ GSC 25/ SS 304 / SS 316 / Bronze Rg-5 |
| 3 | Gasket | EPDM/ Klingerit |
| 4 | Bonnet | GG 25 / GGG 40/ GSC 25/ SS 304 / SS 316 / Bronze Rg-5 |
| 5 | Packing | PTFE + Graphite |
| 6 | Gland | GG 25 / GGG 40/ GSC 25/ SS 304 / SS 316 / Bronze Rg-5 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions BS 1735 | PN10-16 Flange Dimensions DIN EN 1092 | PN40 Flange Dimensions DIN EN 1092 | ANSI 125-150 Flange Dimensions | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | E | F | P | J | K | D | k | D | k | D | k | kg |
| 10-16 | 25 | 160 | 149 | 57 | 214 | 27 | 27 | 115 | 85 | 115 | 85 | 108 | 79 | 5,5 |
| 32 | 180 | 165 | 65 | 230 | 27 | 27 | 140 | 100 | 140 | 100 | 117 | 89 | 8,5 | |
| 40 | 200 | 189 | 76 | 270 | 32 | 32 | 150 | 110 | 150 | 110 | 127 | 98,5 | 10 | |
| 50 | 230 | 211 | 95 | 292 | 38 | 38 | 165 | 125 | 165 | 125 | 152,4 | 120,7 | 17 | |
| 65 | 290 | 246 | 114 | 34 | 41 | 51 | 250 | 210 | 270 | 220 | 254 | 216 | 60 | |
| 80 | 310 | 260 | 143 | 360 | 48 | 51 | 200 | 160 | 200 | 160 | 191 | 152,4 | 30 | |
| 100 | 350 | 304 | 175 | 405 | 51 | 51 | 220 | 180 | 235 | 190 | 229 | 190,5 | 55 | |
| Pressure Rate | : | PN 10-16 - 40 ASA125-ASA150 |
| Size Range | : | DN 25 - 100 |
| Temperature | : | -25 + 400 °C |
| Flange Ends | : | DIN EN 1092 BS 4504/ASA 125/ASA 150 |
