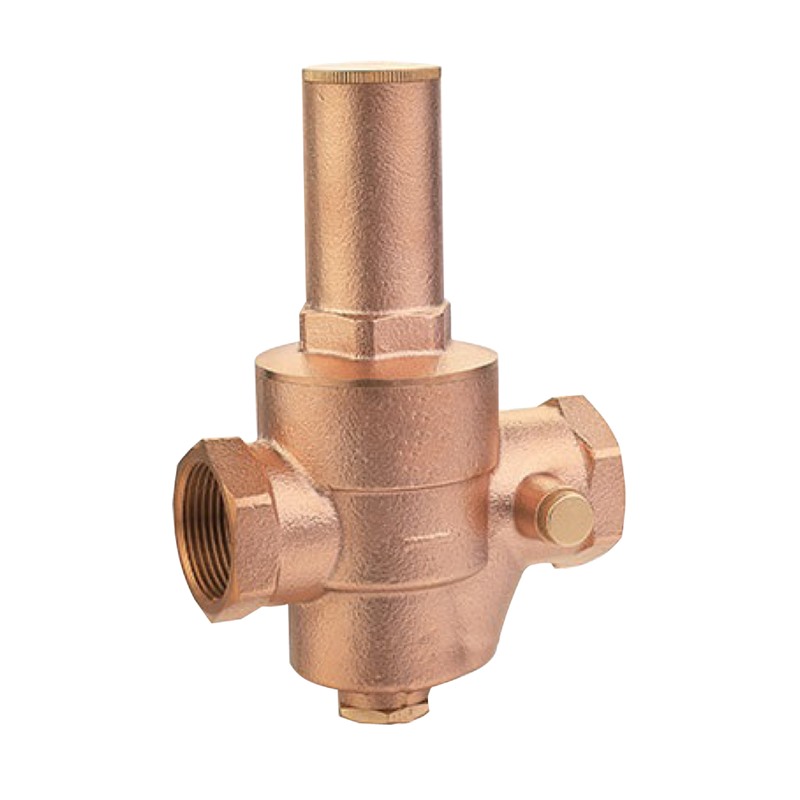

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Bronze Rg5 |
| 2 | Mesh | SS 304 |
| 3 | O-Ring | NBR |
| 4 | Core | CuZn40Pb2 |
| 5 | Bonnet | Bronze Rg5 |
| 6 | Spring | Silicon Manganese Steel |
| 7 | Stem Gasket | CuZn39Pb2 |
| 8 | Cap | CuZn39Pb2 |
| 9 | Disc | CuZn39Pb2 |
| 10 | Gasket | NBR |
| 11 | Stem | CuZn39Pb2 |
| 12 | Connection Plug | CuZn39Pb2 |
| 13 | Diaphragm | NBR+Polytene |

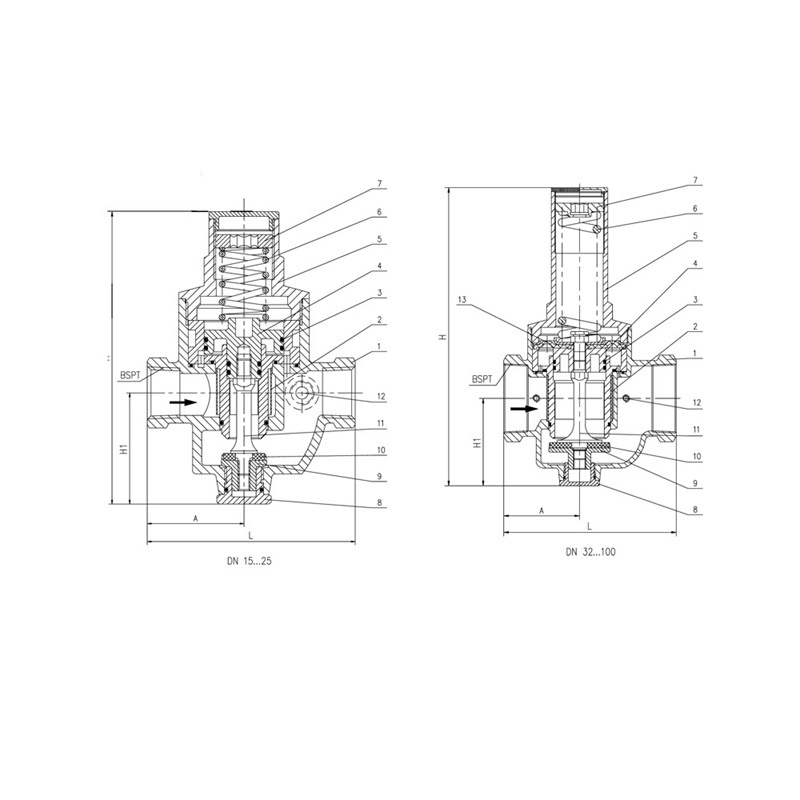

| Dimensions | ||||||
|---|---|---|---|---|---|---|
| DN | L | A | H | H1 | Rc | Stock Code |
| 15 | 89 | 41,5 | 121 | 46 | 1/2" | |
| 20 | 92 | 43 | 121 | 46 | 3/4" | |
| 25 | 98 | 46 | 121 | 46 | 1" | |
| 32 | 126 | 55 | 192 | 62 | 1-1/4" | |
| 40 | 126 | 55,5 | 192 | 62 | 1-1/2" | |
| 50 | 168 | 72 | 272 | 85 | 2" | |
| 65 | 174 | 75,5 | 272 | 85 | 2-1/2" | |
| 80 | 225 | 98,5 | 385 | 113 | 3" | |
| 100 | 230 | 104,5 | 385 | 113 | 4" | |
| Pressure Rate | : | 20 Bar |
| Size Range | : | DN15-DN100 |
| Ends | : | BSPT |
| Temperature | : | <170 Cº |
| Application | : | Water and Gas. |
| Out Pressure DN15....25 | : | 1~4 bar |
| Out Pressure DN32....100 | : | 1~5 bar |
