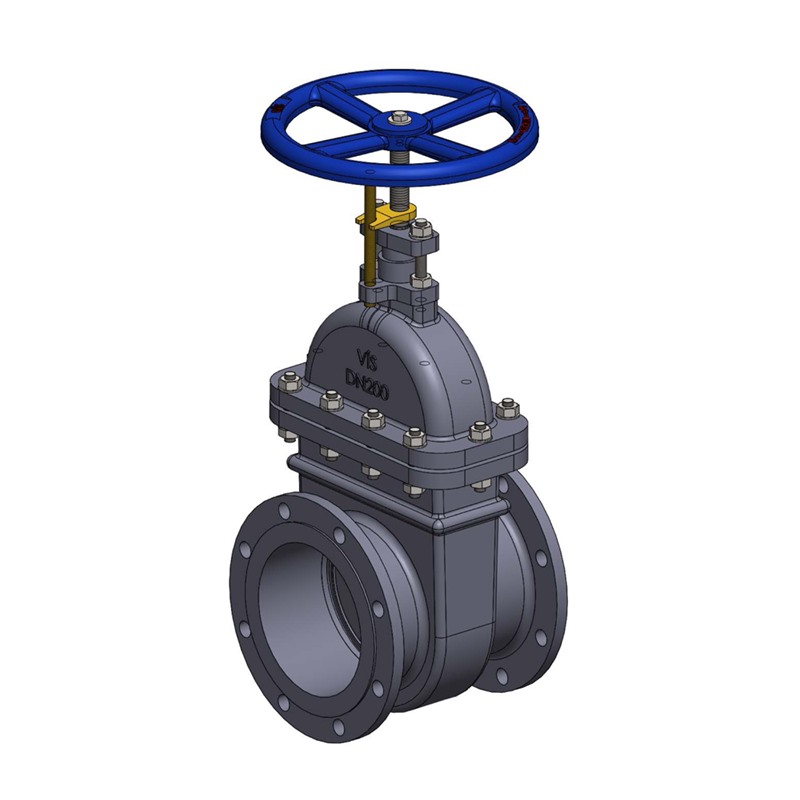

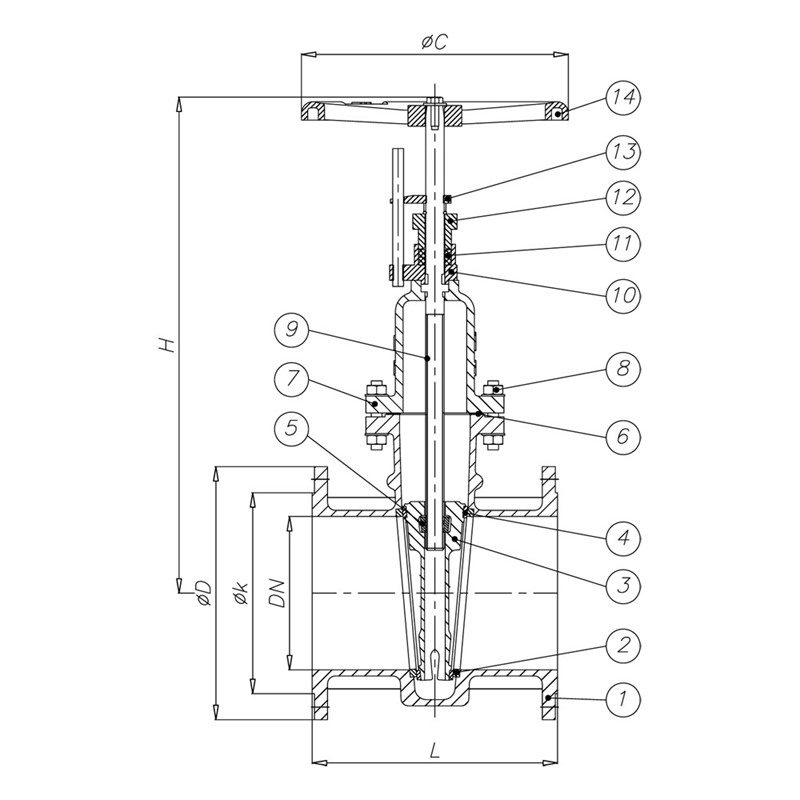

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | GG25 / GGG40 |
2 | Body Seat | SS420 / Bronze |
3 | Wedge | GG25 / GGG40 |
4 | Wedge Ring | SS420 / Bronze |
5 | Stem Nut | GGG40 / Bronze |
6 | Gasket | Non - Asbestos |
7 | Bonnet | GG25 / GGG40 |
8 | Stud, Nut | Galvanized Steel |
9 | Stem | SS420 / Brass |
10 | Stuffing Box | GG25 / GGG40 |
11 | Packing | Graphite |
12 | Gland | GG25 / GGG40 |
13 | Indicator | Bronze |
14 | Handwheel | GG25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||||
|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn |
| 5K | 50 | 180 | 235 | 160 | 130 | 105 | Ø15x4 |
| 65 | 190 | 260 | 160 | 155 | 130 | Ø15x4 | |
| 80 | 200 | 290 | 200 | 180 | 145 | Ø19x4 | |
| 100 | 230 | 310 | 220 | 200 | 165 | Ø19x8 | |
| 125 | 250 | 435 | 250 | 235 | 200 | Ø19x8 | |
| 150 | 270 | 455 | 250 | 265 | 230 | Ø19x8 | |
| 200 | 290 | 580 | 300 | 320 | 280 | Ø23x8 | |
| 250 | 330 | 720 | 400 | 385 | 345 | Ø23x12 | |
| 300 | 370 | 815 | 400 | 430 | 390 | Ø23x12 | |
| 350 | 410 | 925 | 520 | 480 | 435 | Ø25x12 | |
| 400 | 470 | 1030 | 520 | 540 | 495 | Ø25x16 | |
| 450 | 500 | 1075 | 520 | 605 | 555 | Ø25x16 | |
| 500 | 550 | 1265 | 600 | 655 | 605 | Ø25x20 | |
| 600 | 660 | 1300 | 600 | 770 | 715 | Ø27x20 | |
| Design | : | JIS F7363 |
| Pressure Rate | : | 5K |
| Size Range | : | DN50- DN600 |
| Flange Ends | : | JIS B2240 -5K |
| Inspection | : | JIS F7400 |
| Application | : | Water, Air, Gas, Oil |
