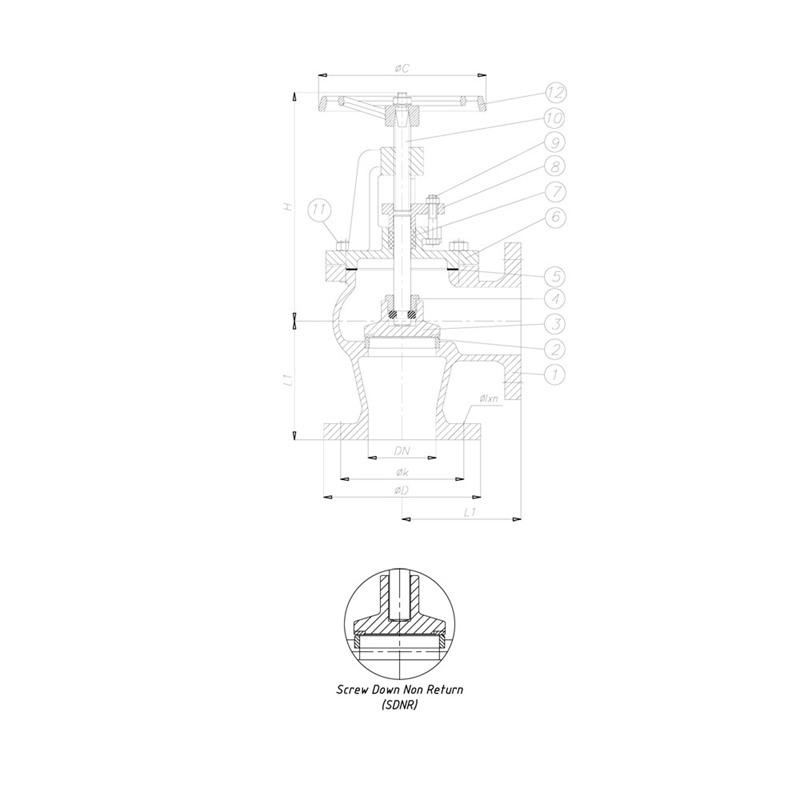

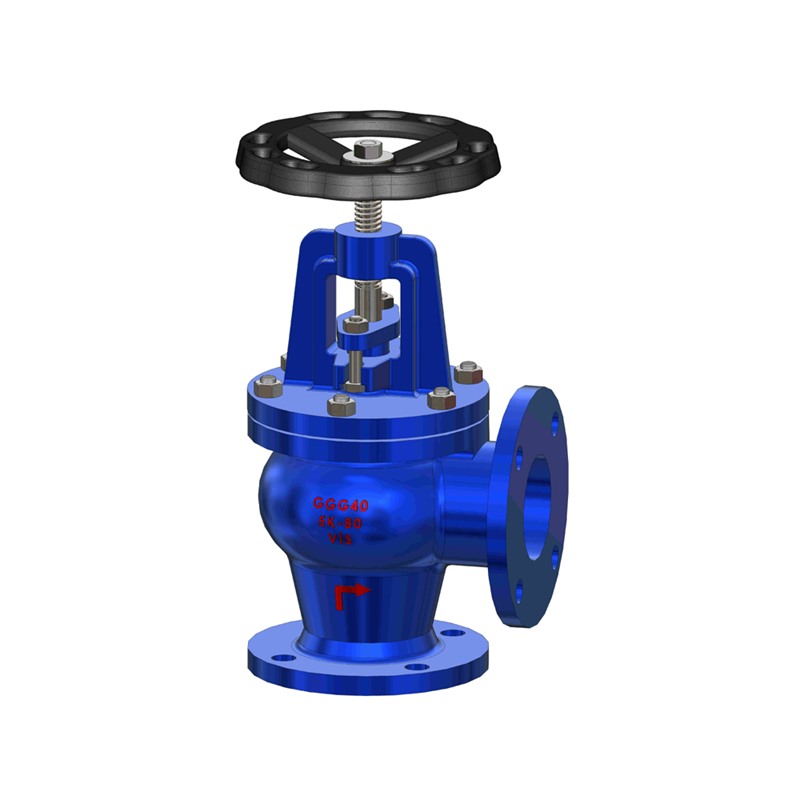

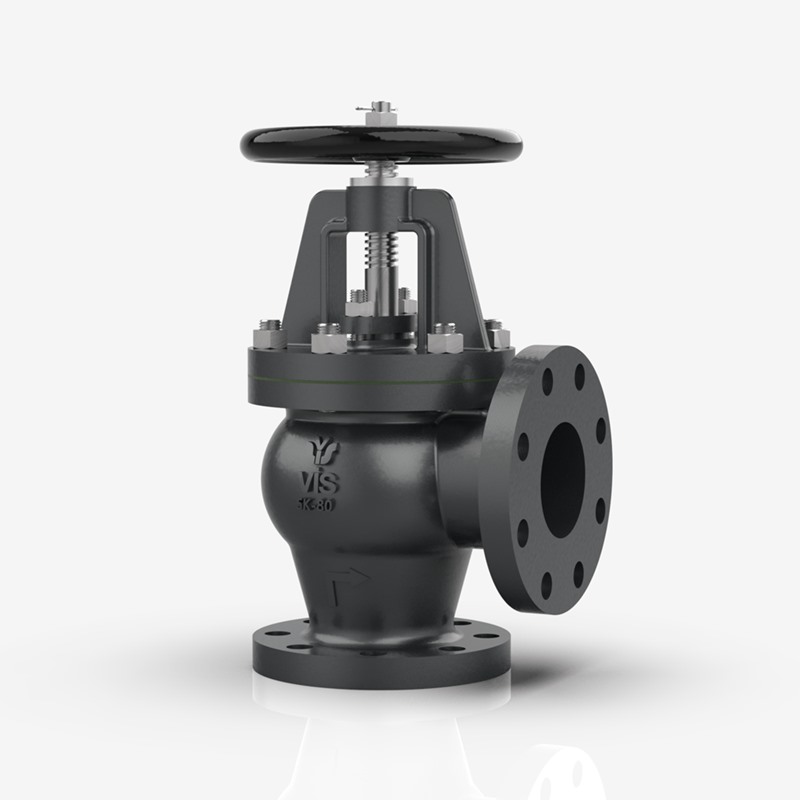

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG 40 / GS-C25 |
| 2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
| 3 | Disc | GG 25 / GGG 40 / GS-C25 |
| 4 | Disc Nut | Brass / 13 Cr |
| 5 | Gasket | Klingerite |
| 6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
| 7 | Packing | Graphite |
| 8 | Gland | GG 25 / GGG 40 / GS-C25 |
| 9 | Bolt/Nut | Galvanized Steel |
| 10 | Stem | CuZn35Ni / 13Cr / SS 304 |
| 11 | Stud/Nut | Galvanized Steel |
| 12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 5K | 50 | 100 | 230 | 160 | 130 | 105 | Ø15x4 | 9,5 | 750216 | 751116 |
| 65 | 130 | 270 | 180 | 155 | 130 | Ø15x4 | 13 | 750217 | 751117 | |
| 80 | 140 | 280 | 200 | 180 | 145 | Ø19x4 | 19,3 | 750218 | 751118 | |
| 100 | 160 | 305 | 220 | 200 | 165 | Ø19x8 | 23,5 | 750219 | 751119 | |
| 125 | 180 | 355 | 250 | 235 | 200 | Ø19x8 | - | 750220 | 751120 | |
| 150 | 205 | 390 | 300 | 265 | 230 | Ø19x8 | - | 750221 | 751121 | |
| 200 | 230 | 485 | 400 | 320 | 280 | Ø23x8 | - | 750222 | 751122 | |
| 250 | 290 | 540 | 400 | 385 | 345 | Ø23x12 | - | 750223 | 751123 | |
| 300 | 320 | 610 | 500 | 430 | 390 | Ø23x12 | - | 750224 | 751124 | |
| 350 | 360 | 690 | 500 | 480 | 435 | Ø25x12 | - | 750225 | 751125 | |
| 400 | 395 | 770 | 630 | 540 | 495 | Ø25x16 | - | 750226 | 751126 | |
| Design | : | JIS F7306 STOP JIS F7354 SDNR |
| Pressure Rate | : | 5K |
| Size Range | : | DN50-DN400 |
| Flange Ends | : | JIS B2239 - 5K |
| Inspection | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold Water, Oil and Steam |
