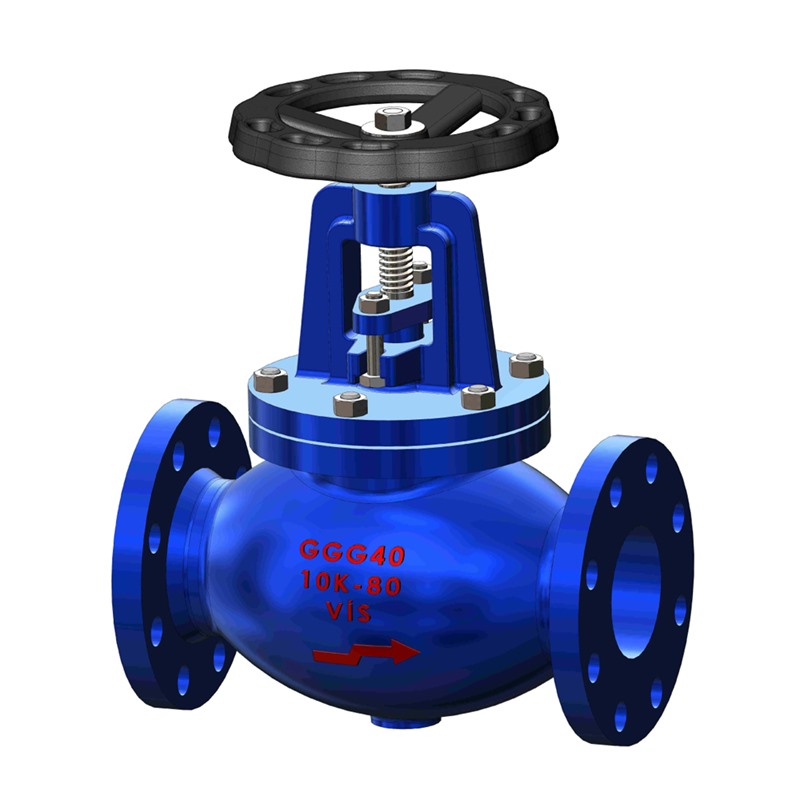

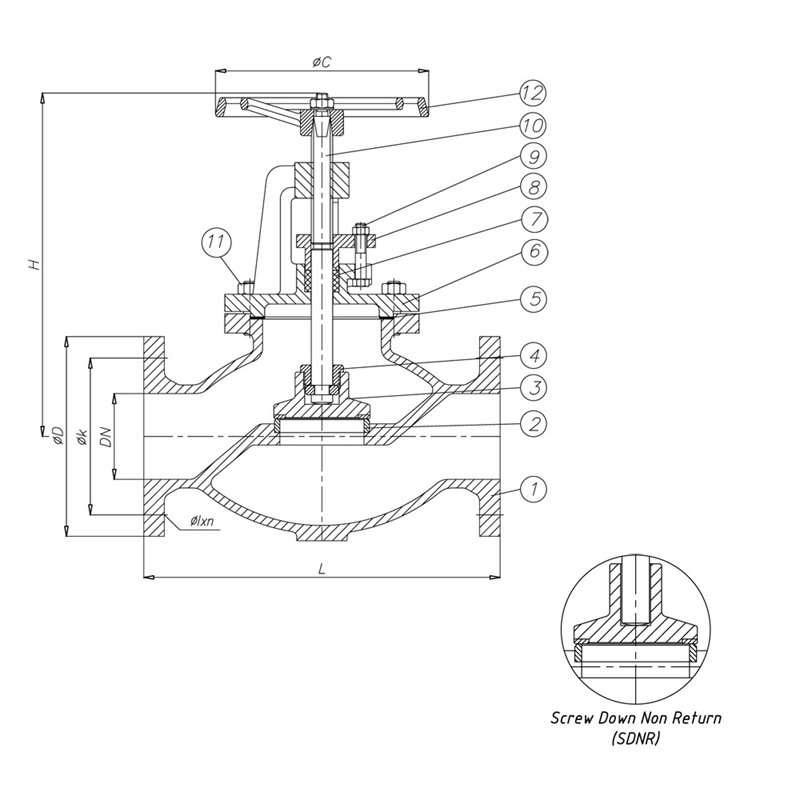

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | GG 25 / GGG 40 / GS-C25 |
2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
3 | Disc | GG 25 / GGG 40 / GS-C25 |
4 | Disc Nut | Brass / 13 Cr |
5 | Gasket | Klingerite |
6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
7 | Packing | Graphite |
8 | Gland | GG 25 / GGG 40 / GS-C25 |
9 | Bolt/Nut | Galvanized Steel |
10 | Stem | CuZn35Ni / 13Cr / SS 304 |
11 | Stud/Nut | Galvanized Steel |
12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 10K | 50 | 220 | 260 | 160 | 155 | 120 | Ø19x4 | 12,4 | 750231 | 751131 |
| 65 | 270 | 300 | 180 | 175 | 140 | Ø19x4 | 18,2 | 750232 | 751132 | |
| 80 | 300 | 315 | 200 | 185 | 150 | Ø19x8 | 24,1 | 750233 | 751133 | |
| 100 | 350 | 340 | 220 | 210 | 175 | Ø19x8 | 31,1 | 750234 | 751134 | |
| 125 | 430 | 400 | 250 | 250 | 210 | Ø23x8 | 47,5 | 750235 | 751135 | |
| 150 | 500 | 460 | 300 | 280 | 240 | Ø23x8 | - | 750236 | 751136 | |
| 200 | 570 | 550 | 400 | 330 | 290 | Ø23x12 | - | 750237 | 751137 | |
| Design | : | JIS F7307 STOP - JIS F7375 SDNR |
| Pressure Rate | : | 10K |
| Size Range | : | DN50- DN300 |
| Flange Ends | : | JIS B2239 - 10K |
| Inspection | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold Water, Oil and Steam |
