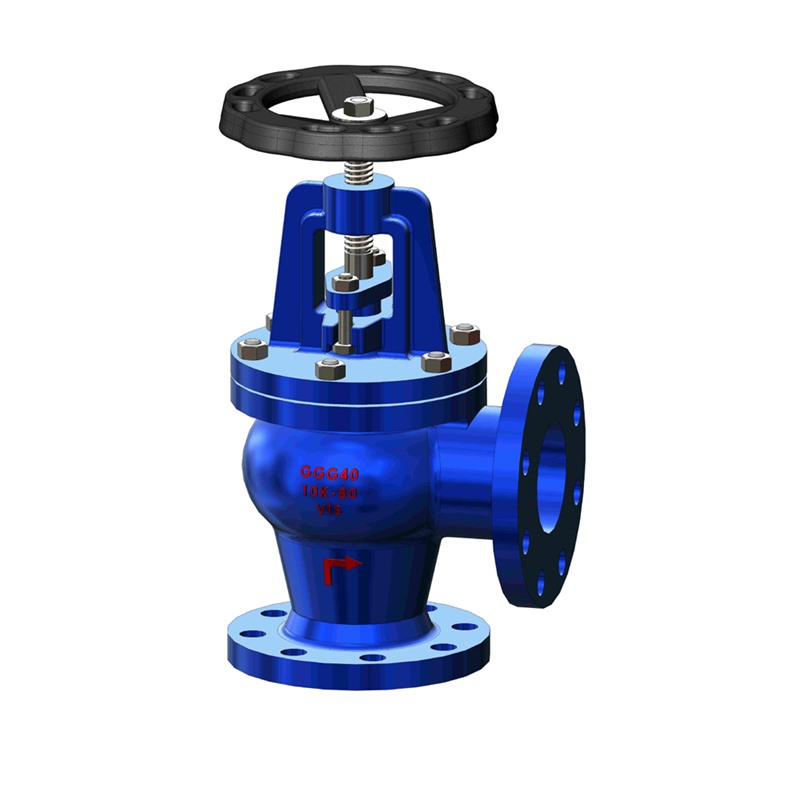

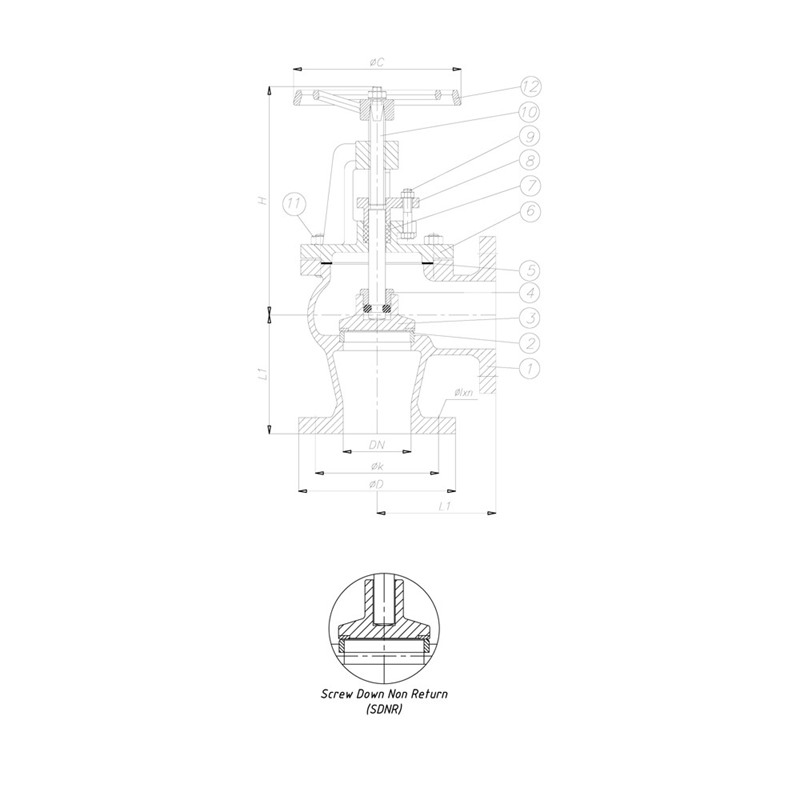

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | GG 25 / GGG 40 / GS-C25 |
2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
3 | Disc | GG 25 / GGG 40 / GS-C25 |
4 | Disc Nut | Brass / 13 Cr |
5 | Gasket | Klingerite |
6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
7 | Packing | Graphite |
8 | Gland | GG 25 / GGG 40 / GS-C25 |
9 | Bolt/Nut | Galvanized Steel |
10 | Stem | CuZn35Ni / 13Cr / SS 304 |
11 | Stud/Nut | Galvanized Steel |
12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 16K | 50 | 120 | 230 | 160 | 155 | 120 | Ø19x4 | 9,5 | 750246 | 751141 |
| 65 | 130 | 270 | 180 | 175 | 140 | Ø19x4 | 13 | 750247 | 751142 | |
| 80 | 140 | 280 | 200 | 185 | 150 | Ø19x8 | 19,3 | 750248 | 751143 | |
| 100 | 160 | 305 | 220 | 210 | 175 | Ø19x8 | 23,5 | 750249 | 751144 | |
| 125 | 180 | 355 | 250 | 250 | 210 | Ø23x8 | - | 750250 | 751145 | |
| 150 | 205 | 390 | 300 | 280 | 240 | Ø23x8 | - | 750251 | 751146 | |
| 200 | 230 | 485 | 400 | 330 | 290 | Ø23x12 | - | 750252 | 751147 | |
| 250 | 290 | 540 | 400 | 400 | 335 | Ø25x12 | - | 750253 | - | |
| 300 | 320 | 610 | 500 | 445 | 400 | Ø25x16 | - | 750254 | - | |
| 350 | 360 | 690 | 500 | 490 | 445 | Ø25x16 | - | 750255 | - | |
| 400 | 420 | 770 | 630 | 560 | 510 | Ø25x16 | - | 750256 | - | |
| Design | : | JIS F7308 STOP - JIS F7376 SDNR |
| Pressure Rate | : | 10K |
| Size Range | : | DN50 - DN400 |
| Flange Ends | : | JIS B2239 - 10K |
| Inspection | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold Water, Oil and Steam. |
