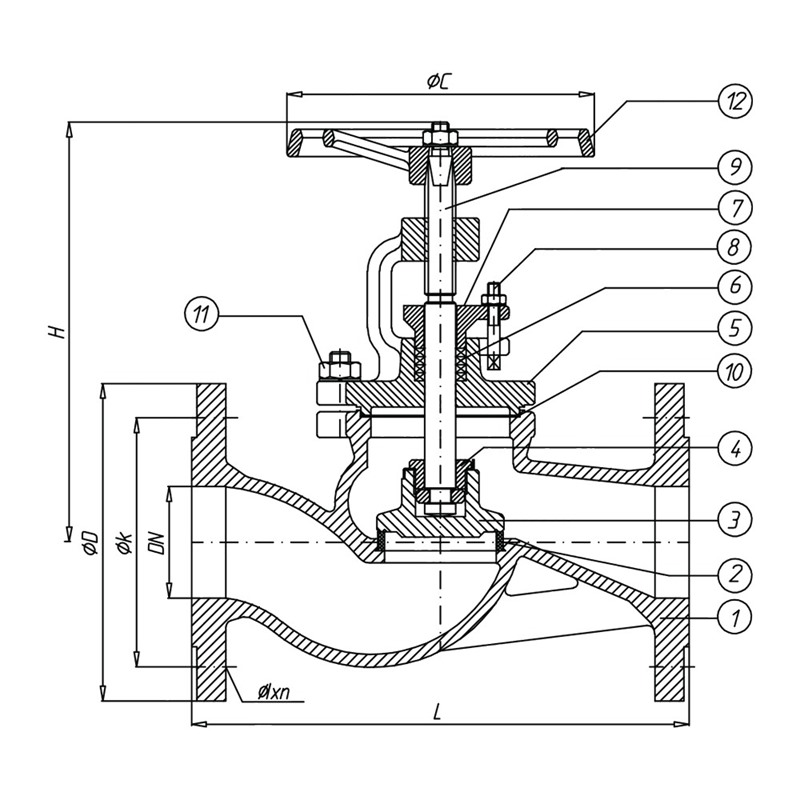

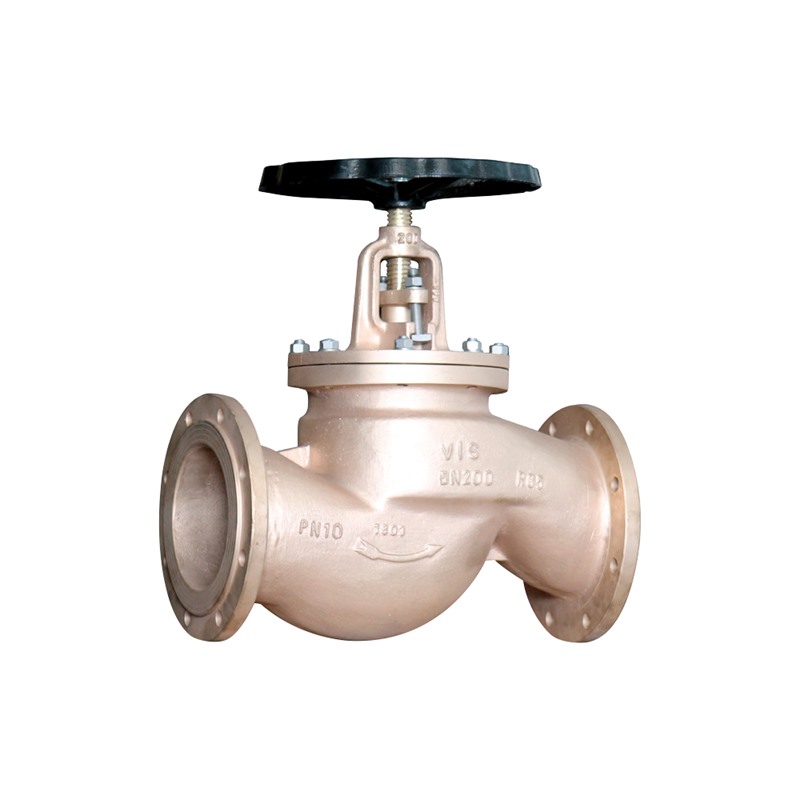

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG-25 / GGG-40 / GS-25 Bronze AISI 304, 316 Monel GS-17CrMo5,5 |
| 2 | Seats Ring | AISI 304, 316, 13Cr Bronze, Stellite 6-21 PTFE, NBR, EPDM |
| 3 | Disc | AISI 304, 316, 13Cr Bronze, GS-C 25 PTFE |
| 4 | Disc Nut | Ms 58/S.S |
| 5 | Bonnet | GG-25 / GGG-40 / GS-25 Bronze AISI 304, 316 Monel GS-17CrMo5,5 |
| 6 | Packing | Graphite |
| 7 | Gland | GG-25 / GGG-40 / GS-25 Bronze AISI 304, 316 Monel GS-17CrMo5,5 |
| 8 | T Stud, Nut | 5,6-8 |
| 9 | Stem | AISI 420, 304, 306, 13Cr Bronze, CuSo8 Ms-58 |
| 10 | Gasket | Klingerite |
| 11 | Stud, Nut | 5,6-8 |
| 12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3356/2 DIN EN 558-1 | PN10 Flange Dimensions DIN EN 1092 | Weight | PN16 Flange Dimensions DIN EN 1092 | Weight | PN25 Flange Dimensions DIN EN 1092 | Weight | PN40 Flange Dimensions DIN EN 1092 | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | ØC | H max. | D | k | Øxn | kg | D | k | Øxn | kg | D | k | Øxn | kg | D | k | Øxn | kg |
| 10 - 16 - 25 - 40 | 15 | 130 | 120 | 185 | 95 | 65 | Ø14x4 | 3,6 | 95 | 65 | Ø14x4 | 3,6 | 95 | 65 | Ø14x4 | 4 | 95 | 65 | Ø14x4 | 4,7 |
| 20 | 150 | 120 | 185 | 105 | 75 | Ø14x4 | 4,25 | 105 | 75 | Ø14x4 | 4,25 | 105 | 75 | Ø14x4 | 4,5 | 105 | 75 | Ø14x4 | 5 | |
| 25 | 160 | 140 | 195 | 115 | 85 | Ø14x4 | 5,15 | 115 | 85 | Ø14x4 | 5,15 | 115 | 85 | Ø14x4 | 5,75 | 115 | 85 | Ø14x4 | 6 | |
| 32 | 180 | 140 | 205 | 140 | 100 | Ø18x4 | 6,75 | 140 | 100 | Ø18x4 | 6,75 | 140 | 100 | Ø18x4 | 6,85 | 140 | 100 | Ø18x4 | 7 | |
| 40 | 200 | 160 | 230 | 150 | 110 | Ø18x4 | 9,6 | 150 | 110 | Ø18x4 | 9,6 | 150 | 110 | Ø18x4 | 10,2 | 150 | 110 | Ø18x4 | 11,5 | |
| 50 | 230 | 160 | 240 | 165 | 125 | Ø18x4 | 12 | 165 | 125 | Ø18x4 | 12 | 165 | 125 | Ø18x4 | 12,5 | 165 | 125 | Ø18x4 | 13 | |
| 65 | 290 | 180 | 275 | 185 | 145 | Ø18x4 | 16,4 | 185 | 145 | Ø18x4 | 16,4 | 185 | 145 | Ø18x8 | 18,5 | 185 | 145 | Ø18x8 | 21 | |
| 80 | 310 | 200 | 290 | 200 | 160 | Ø18x8 | 23,2 | 200 | 160 | Ø18x8 | 23,2 | 200 | 160 | Ø18x8 | 25 | 200 | 160 | Ø18x8 | 27 | |
| 100 | 350 | 225 | 350 | 220 | 180 | Ø18x8 | 33 | 220 | 180 | Ø18x8 | 33 | 235 | 190 | Ø22x8 | 35 | 235 | 190 | Ø22x8 | 36 | |
| 125 | 400 | 250 | 410 | 250 | 210 | Ø18x8 | 55 | 250 | 210 | Ø18x8 | 55 | 270 | 220 | Ø26x8 | 58 | 270 | 220 | Ø26x8 | 60,5 | |
| 150 | 480 | 285 | 430 | 285 | 240 | Ø22x8 | 87,5 | 285 | 240 | Ø22x8 | 87,5 | 300 | 250 | Ø26x8 | 92 | 300 | 250 | Ø26x8 | 101 | |
| 200 | 600 | 320 | 525 | 340 | 295 | Ø22x8 | 130 | 340 | 295 | Ø22x12 | 136 | 360 | 310 | Ø26x12 | 150 | 375 | 320 | Ø30x12 | 164 | |
| 250 | 730 | 400 | 630 | 400 | 350 | Ø22x12 | 204 | 400 | 355 | Ø26x12 | 212 | 425 | 370 | Ø30x12 | 230 | 450 | 385 | Ø33x12 | 235 | |
| 300 | 850 | 460 | 700 | 455 | 400 | Ø22x12 | 280 | 455 | 410 | Ø26x12 | 290 | 485 | 430 | Ø30x16 | 300 | 515 | 450 | Ø33x16 | 315 | |
| 350 | 980 | 460 | 760 | 505 | 460 | Ø22x16 | 370 | 520 | 470 | Ø26x16 | 380 | 555 | 490 | Ø33x16 | 395 | 580 | 510 | Ø36x16 | 410 | |
| 400 | 1100 | 640 | 840 | 565 | 515 | Ø26x16 | 505 | 580 | 525 | Ø30x16 | 515 | 620 | 550 | Ø36x16 | 530 | 660 | 585 | Ø39x16 | 550 | |
| 450 | 1200 | 640 | 915 | 615 | 565 | Ø26x20 | 705 | 640 | 585 | Ø30x20 | 715 | 670 | 600 | Ø36x20 | 730 | 685 | 610 | Ø39x20 | 750 | |
| 500 | 1250 | 640 | 980 | 670 | 620 | Ø26x20 | 915 | 715 | 650 | Ø33x20 | 925 | 730 | 660 | Ø36x20 | 950 | 755 | 670 | Ø42x20 | 970 | |
| 600 | 1450 | 640 | 1200 | 780 | 725 | Ø30x20 | 1110 | 840 | 770 | Ø36x20 | 1150 | 845 | 770 | Ø39x20 | 1150 | 890 | 795 | Ø48x20 | 1200 | |
| Size | : | DN 15 - DN600 |
| Pressure | : | PN 10-16-25-40 |
| Ends | : | DIN EN 1092 (Flange) |
| Dimensions | : | DIN3356/2-F1 (Straight) DIN EN 558-1-1 |
| Tests | : | DIN EN 12266 |
| Options | : | Regulating Disc, ANSI Flange |
