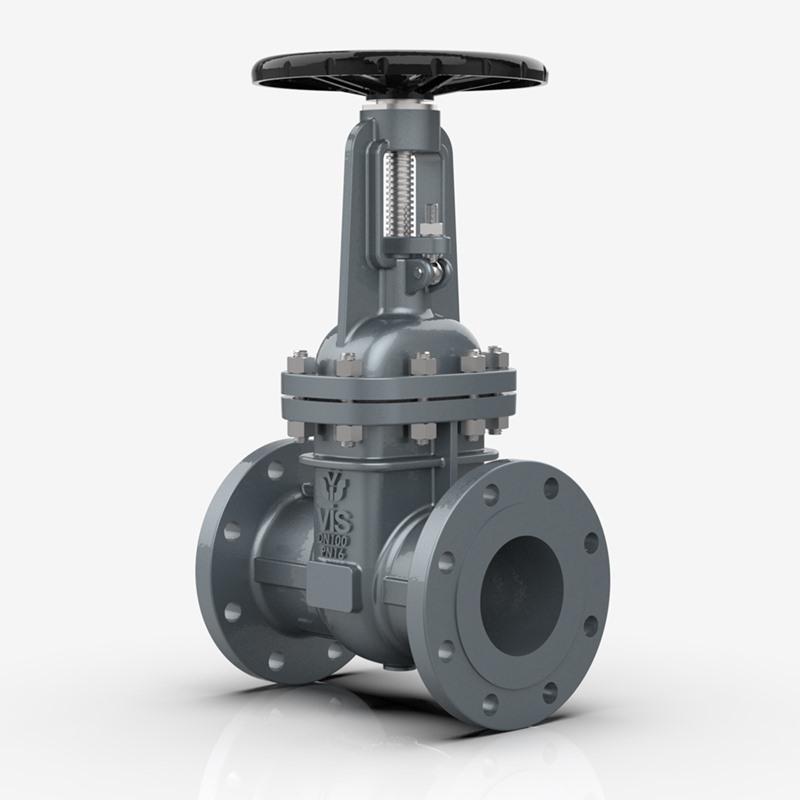

| Pressure Range | Cast IronGG25 | Ductlle Iron GGG40 |
|---|---|---|
| DN40-DN600 | PN16 | PN25 |
| DN700-DN1000 | PN10 | PN16 |

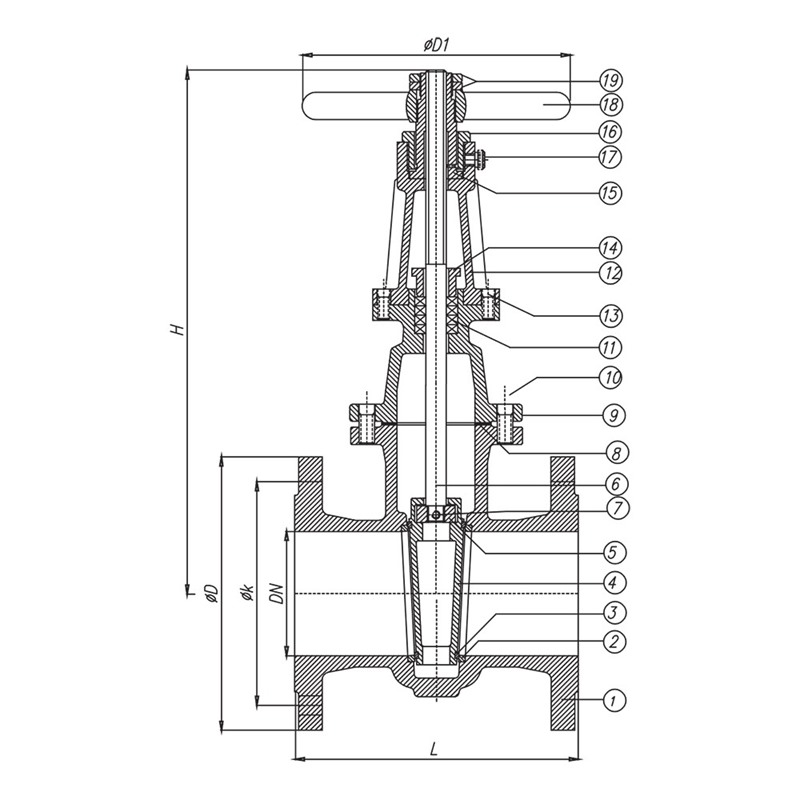

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 2 | Body Seat | Ms 58/ Bronze / S.S |
| 3 | Wedge | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 4 | Wedge Seat | Ms 58/ Bronze / S.S |
| 5 | Stem Nut | Ms 58 /Bronze / S.S |
| 6 | Stem | SS420/Ms58/Som59/CuZn35Ni/CuSn8, CuSn10/SS304,SS316 |
| 7 | Pin | Ms 58/ Bronze / S.S |
| 8 | Gasket | KLINGERITE/ EPDM/ GRAPHITE |
| 9 | Bonnet | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 10 | Bolt | 8.8 / A2 / A4 |
| 11 | Packing | GRAPHITE/ TEFLON |
| 12 | Yoke | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 13 | Bolt | 8.8 / A2 / A4 |
| 14 | Packing Nut | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 15 | Yoke Nut | Ms 58/ Bronze / GGG 40 |
| 16 | Centering Nut | Ms 58/ Bronze / S.S |
| 17 | Oil Nipple | St. |
| 18 | Handwheel | GG 20 |
| 19 | Handwheel Nut | Ms 58 /Bronze / S.S |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN EN 1171 DIN 3352/3-F5 | PN10 Flange Dimensions EN 1092-2 | PN16 Flange Dimensions EN 1092-2 | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H min | H max | D1 | D | k | D | k | kg |
| 10 - 16 - 25 - 40 | 40 | 240 | 365 | 425 | 200 | 150 | 110 | 150 | 110 | 19 |
| 50 | 250 | 380 | 450 | 200 | 165 | 125 | 165 | 125 | 21,5 | |
| 65 | 270 | 450 | 540 | 250 | 185 | 145 | 185 | 145 | 30 | |
| 80 | 280 | 470 | 560 | 250 | 200 | 160 | 200 | 160 | 34,5 | |
| 100 | 300 | 580 | 690 | 315 | 220 | 180 | 220 | 180 | 46 | |
| 125 | 325 | 650 | 790 | 315 | 250 | 210 | 250 | 210 | 57 | |
| 150 | 350 | 725 | 895 | 315 | 285 | 240 | 285 | 240 | 71 | |
| 200 | 400 | 815 | 1030 | 400 | 340 | 295 | 340 | 295 | 148 | |
| 250 | 450 | 1135 | 1430 | 500 | 395 | 350 | 405 | 355 | 205 | |
| 300 | 500 | 1220 | 1545 | 500 | 445 | 400 | 460 | 410 | 285 | |
| 350 | 550 | 1320 | 1700 | 500 | 505 | 460 | 520 | 470 | 380 | |
| 400 | 600 | 1530 | 1970 | 630 | 565 | 515 | 580 | 525 | 535 | |
| 500 | 700 | 1915 | 2465 | 800 | 670 | 620 | 715 | 650 | 860 | |
| 600 | 800 | 2070 | 2720 | 800 | 780 | 725 | 840 | 770 | 1160 | |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 15 (DN3202 F5) |
| Pressure Rate | : | PN10-16-25-40 |
| Size Range | : | DN40-DN1000 |
| Temperature | : | -20....+400 oC |
| Flange Ends | : | DIN EN 1092-2/B |
| Test | : | EN 12266 |
