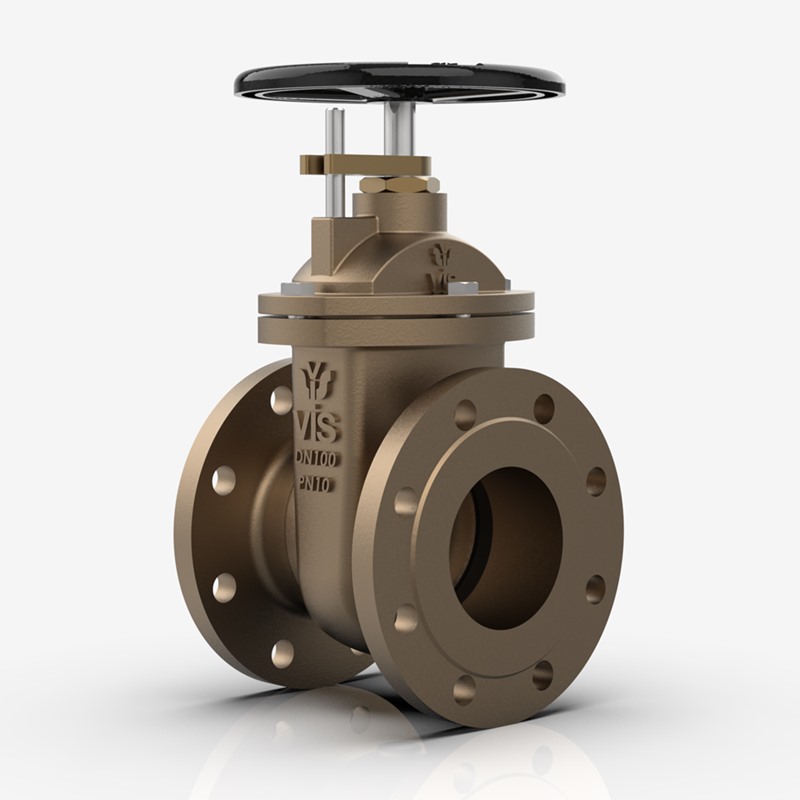

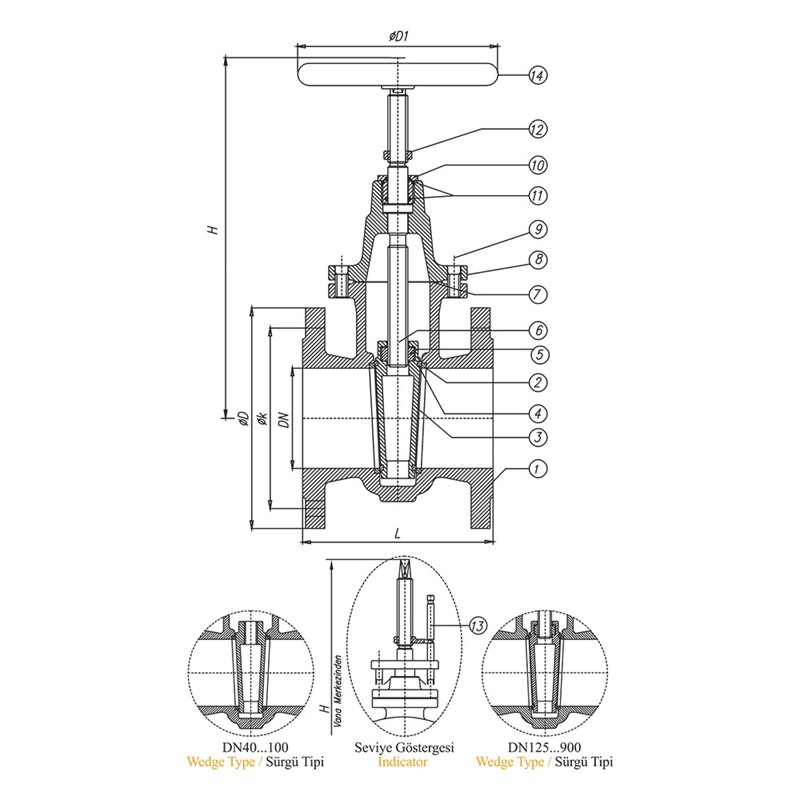

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 2 | Body Seat | Bronze / SS304, SS316 |
| 3 | Wedge | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 4 | Wedge Seat | Bronze / SS304, SS316 |
| 5 | Stem Nut Only 125…900 | Ms58/Bronze /GGG 40 |
| 6 | Stem | Ms58 / Som59 / CuZn35Ni / CuSn8, CuSn10 / SS420, SS304, SS316 |
| 7 | Gasket | EPDM/ NBR / Klingerit / Graphite |
| 8 | Bonnet | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10/ SS304, SS316 |
| 9 | Bolt | 8.8 / A2 / A4 |
| 10 | Packing nut | Ms 58/Bronze/S.S |
| 11 | O-Ring | EPDM |
| 12 | Indicator | Ms 58/ SS420, SS304, SS316 |
| 13 | Indicator Pin | Ms 58/ SS420, SS304, SS316 |
| 14 | Handwheel | GG 20 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN EN 1171 | PN10 Flange Dimensions EN 1092-2 | PN16 Flange Dimensions EN 1092-2 | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | D | k | D | k | kg |
| 16-10 | 40 | 140 | 190 | 160 | 150 | 110 | 150 | 110 | 8,5 |
| 50 | 150 | 235 | 160 | 165 | 125 | 165 | 125 | 10,5 | |
| 65 | 170 | 260 | 160 | 185 | 145 | 185 | 145 | 11,4 | |
| 80 | 180 | 290 | 160 | 200 | 160 | 200 | 160 | 11,6 | |
| 100 | 190 | 310 | 200 | 220 | 180 | 220 | 180 | 22,5 | |
| 125 | 200 | 435 | 250 | 250 | 210 | 250 | 210 | 37,5 | |
| 150 | 210 | 455 | 250 | 285 | 240 | 285 | 240 | 45 | |
| 10-6 | 200 | 230 | 580 | 250 | 340 | 295 | 340 | 295 | 82 |
| 250 | 250 | 720 | 315 | 395 | 350 | 395 | 350 | 125 | |
| 300 | 270 | 815 | 315 | 445 | 400 | 445 | 400 | 178 | |
| 6-4 | 350 | 290 | 925 | 400 | 505 | 460 | 505 | 460 | 228 |
| 400 | 310 | 1030 | 400 | 565 | 515 | 565 | 515 | 293 | |
| 500 | 350 | 1265 | 500 | 670 | 620 | 670 | 620 | 465 | |
| 4-2,5 | 600 | 390 | 1450 | 500 | 780 | 725 | 780 | 725 | 685 |
| 700 | 43 | 1650 | 630 | 895 | 840 | 895 | 840 | 875 | |
| 2,5-1,6 | 800 | 470 | 1860 | 800 | 1015 | 950 | 1015 | 950 | 1205 |
| 1,6-1 | 900 | 510 | 1990 | 800 | 1115 | 1050 | 1115 | 1050 | 1405 |
| 1000 | 550 | 2030 | 800 | 1230 | 1060 | 1230 | 1060 | 1540 | |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 14 (DN3202 F4) |
| Pressure Rate | : | PN10-PN16 |
| Size Range | : | DN40-DN1000 |
| Temperature | : | -10....+120 oC |
| Flange Ends | : | DIN EN 1092-2/B |
| Tests | : | EN 12266 |
