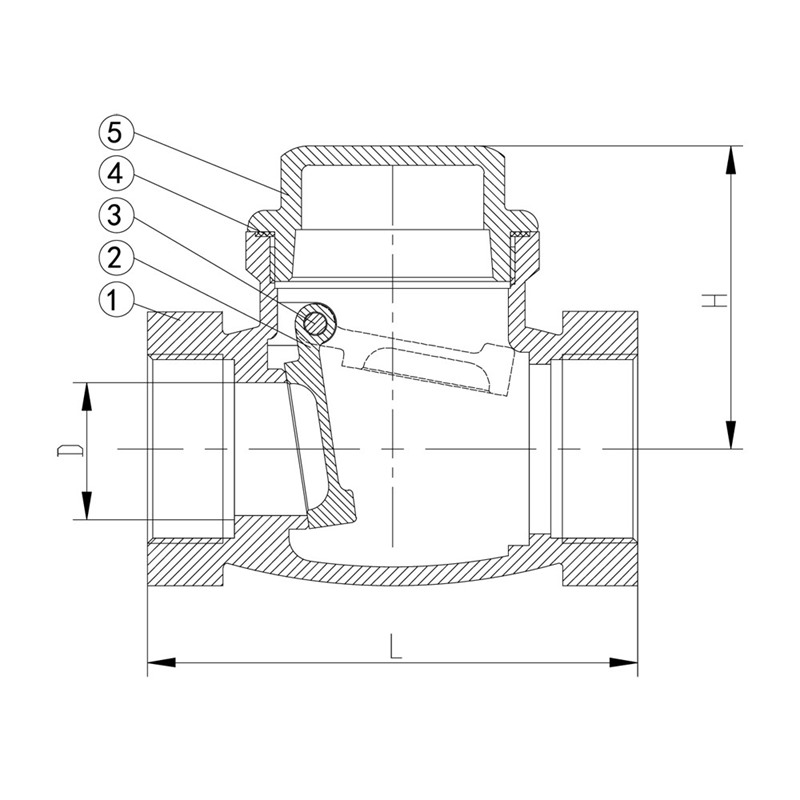

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Disc | CF8 / CF8M |
| 3 | Pin | SS304 / SS316 |
| 4 | Gasket | PTFE |
| 5 | Cap | CF8 / CF8M |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||
|---|---|---|---|---|---|
| PN | DN | L | D | H | Rc |
| 16 | 15 | 62 | 15,5 | 43 | 1/2" |
| 20 | 75 | 20 | 45 | 3/4" | |
| 25 | 84 | 23,5 | 49 | 1" | |
| 32 | 100 | 30 | 56 | 1-1/4" | |
| 40 | 115 | 37 | 64 | 1-1/2" | |
| 50 | 134 | 46 | 71 | 2" | |
| 65 | 164 | 64 | 91 | 2-1/2" | |
| 80 | 190 | 74,5 | 103 | 3" | |
| 100 | 237 | 96 | 138 | 4" | |
| Pressure Rate | : | 16 Bar |
| Size Range | : | DN15-DN50 |
| Ends | : | BSP |
| Temperature | : | -20~180 °C |
| Application | : | Water, Oil and Gas. |
