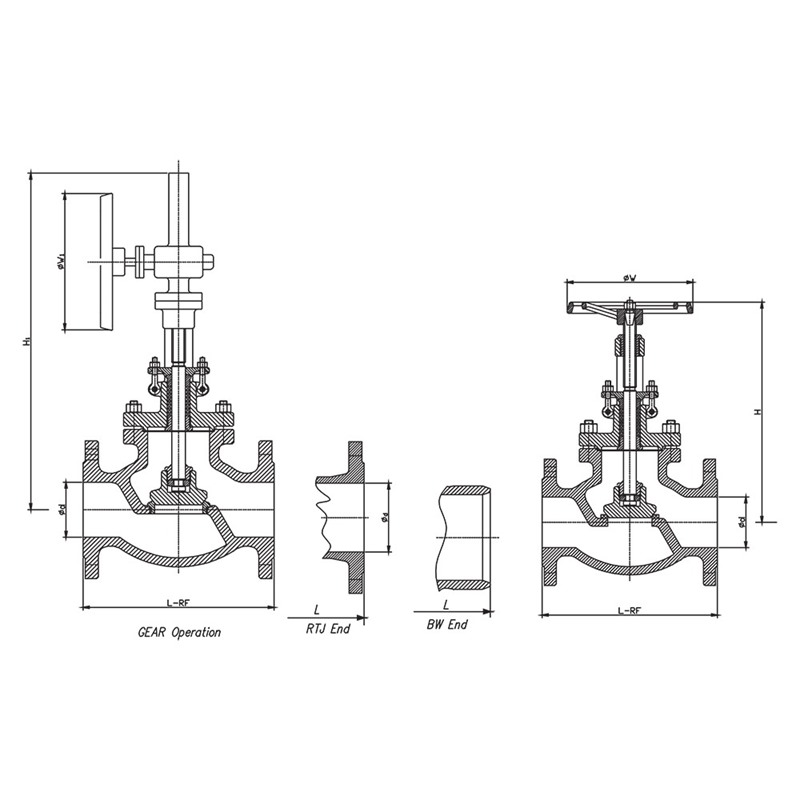

| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | L (RF) | L (RTJ) | L (BW) | d | H | H1 | W | W1 | H.W | G.O | |
| 300 | 15 | 1.2 | 152 | 164 | 152 | 13 | 184 | - | 120 | - | 5 | - |
| 20 | 3.4 | 178 | 191 | 178 | 19 | 226 | - | 160 | - | 45418 | - | |
| 25 | 1 | 203 | 216 | 203 | 25 | 233 | - | 160 | - | 9 | - | |
| 32 | 1 1/4 | 216 | 229 | 216 | 32 | 253 | - | 160 | - | 12 | - | |
| 40 | 1 1/2 | 229 | 241 | 229 | 38 | 273 | - | 160 | - | 16 | - | |
| 50 | 2 | 267 | 283 | 267 | 51 | 346 | - | 200 | - | 29 | - | |
| 65 | 2 1/2 | 292 | 308 | 292 | 64 | 390 | - | 250 | - | 44 | - | |
| 80 | 3 | 318 | 333 | 318 | 76 | 403 | - | 280 | - | 59 | - | |
| 100 | 4 | 356 | 371 | 356 | 102 | 474 | - | 350 | - | 87 | - | |
| 125 | 5 | 400 | 416 | 400 | 127 | 540 | - | 350 | - | 181 | - | |
| 150 | 6 | 444 | 460 | 444 | 152 | 635 | 690 | 450 | 310 | 162 | 177 | |
| 200 | 8 | 559 | 575 | 559 | 203 | 870 | 950 | 550 | 460 | 281 | 389 | |
| 250 | 10 | 622 | 638 | 622 | 254 | 950 | 990 | 600 | 460 | 355 | 409 | |
| 300 | 12 | 711 | 727 | 711 | 305 | 1030 | 1155 | 700 | 460 | 575 | 635 | |
| 350 | 14 | 838 | - | - | 336 | - | 1155 | - | 600 | - | 880 | |
| 400 | 16 | 864 | - | - | 387 | - | 1325 | - | 600 | - | 1300 | |
| 450 | 18 | 977 | - | - | 431 | - | 1473 | - | 720 | - | 1600 | |
| 500 | 20 | 1016 | - | - | 482 | - | 1574 | - | 720 | - | 2100 | |
