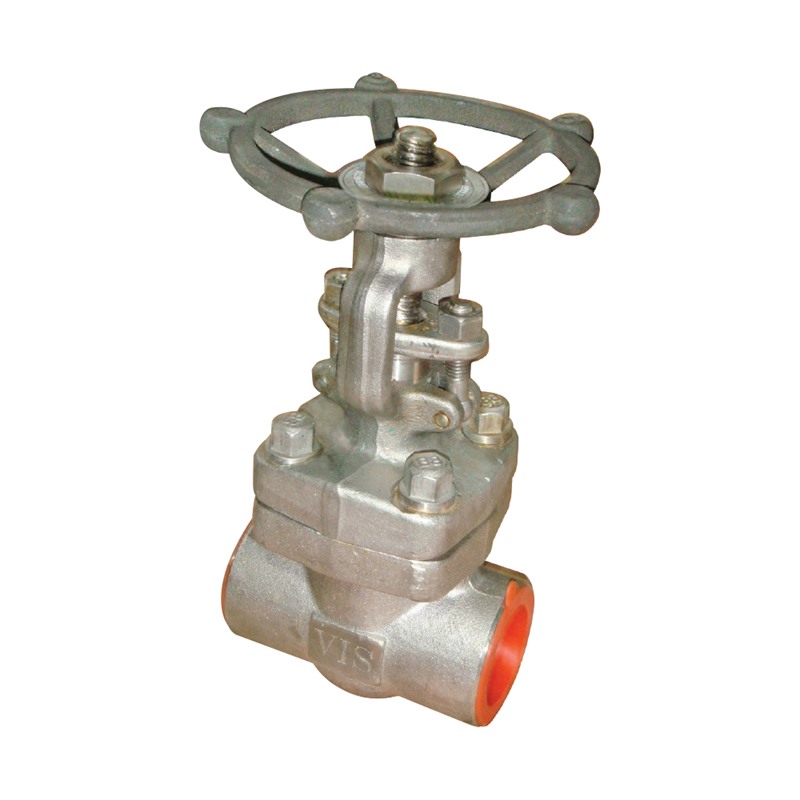

STANDARDS | ||||
|---|---|---|---|---|
Design and Manufacture | API 602 | |||
Inspection and Tests | API598 | |||
Socket-weld dimension | ASME B16.11 | |||
End threads dimension | ASME B1.20.1 | |||
Pressure-temperature ratings | ASME B16.34 | |||

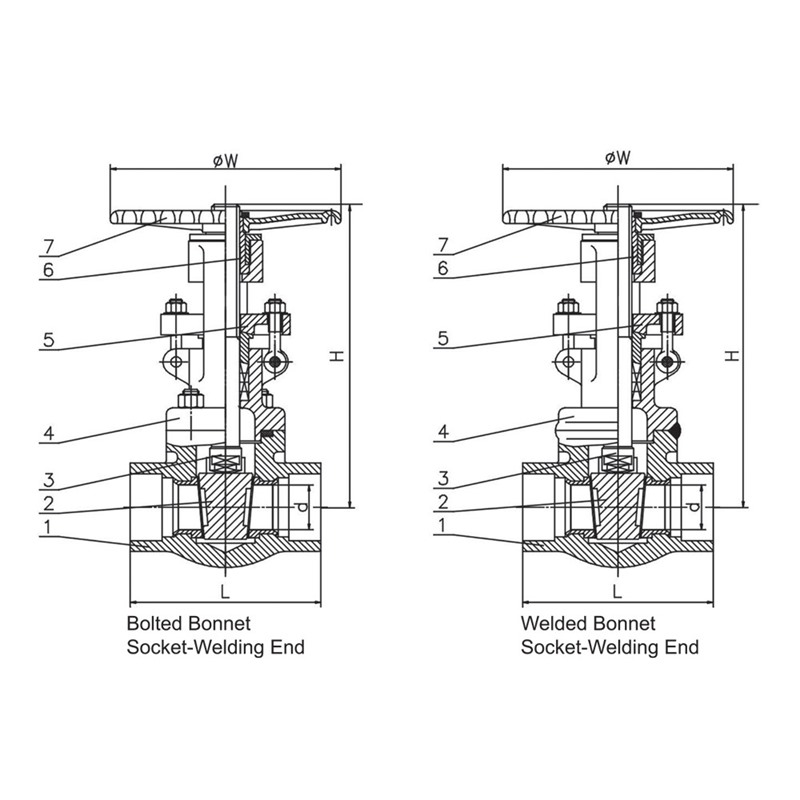

PART NAME | Material | |||
1 | Body | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
2 | Disc | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
3 | Stem | ASTM A182F6 | ASTM A182F304 | ASTM A182F316 |
4 | Bonnet | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
5 | Gland Flange | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
6 | Stem Nut | ASTM A276 Gr.410 | ||
7 | Handwheel | ASTM A197 | ||
| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| DN | NPS | L | d | H | W | NPT | Weight (kg) | |
| 150-800 | 15 | 1/2" | 79 | 13 | 153 | 100 | 1/2" | 2 |
| 20 | 3/4" | 92 | 13 | 153 | 100 | 3/4" | 2,2 | |
| 25 | 1" | 111 | 18 | 185 | 125 | 1" | 3,6 | |
| 32 | 1 1/4" | 120 | 29 | 222 | 160 | 1 1/4" | 6,2 | |
| 40 | 1 1/2" | 120 | 29 | 240 | 160 | 1 1/2" | 6,2 | |
| 50 | 2" | 140 | 36,5 | 279 | 180 | 2" | 9,7 | |
| 900-1500 | 15 | 1/2" | 92 | 13 | 181 | 125 | 1/2" | 3,5 |
| 20 | 3/4" | 111 | 13 | 181 | 125 | 3/4" | 4 | |
| 25 | 1" | 120 | 18 | 218 | 160 | 1" | 6 | |
| 32 | 1 1/4" | 120 | 24 | 237 | 160 | 1 1/4" | 7 | |
| 40 | 1 1/2" | 140 | 29 | 274 | 180 | 1 1/2" | 10,8 | |
| 50 | 2" | 160 | 36,8 | 319 | 200 | 2" | 15,5 | |
| 2500 | 15 | 1/2" | 150 | 14 | 284 | 160 | 1/2" | 10 |
| 20 | 3/4" | 150 | 14 | 284 | 160 | 3/4" | 12,8 | |
| 25 | 1" | 170 | 19 | 327 | 200 | 1" | 22,5 | |
| 32 | 1 1/4" | 200 | 25 | 374 | 250 | 1 1/4" | 31,7 | |
| 40 | 1 1/2" | 200 | 28 | 377 | 250 | 1 1/2" | 33 | |
| 50 | 2" | 250 | 35 | 434 | 300 | 2" | 38 | |
